Why You Need This Kit

• Protect your investment: side awnings can be expensive, and wind damage from inadequate tie-downs can destroy an awning in minutes.
• Peace of mind: sleep soundly knowing your awning is properly secured, even when conditions change unexpectedly.
• Versatile performance: designed to work in challenging conditions where standard pegs fail.

How It Works

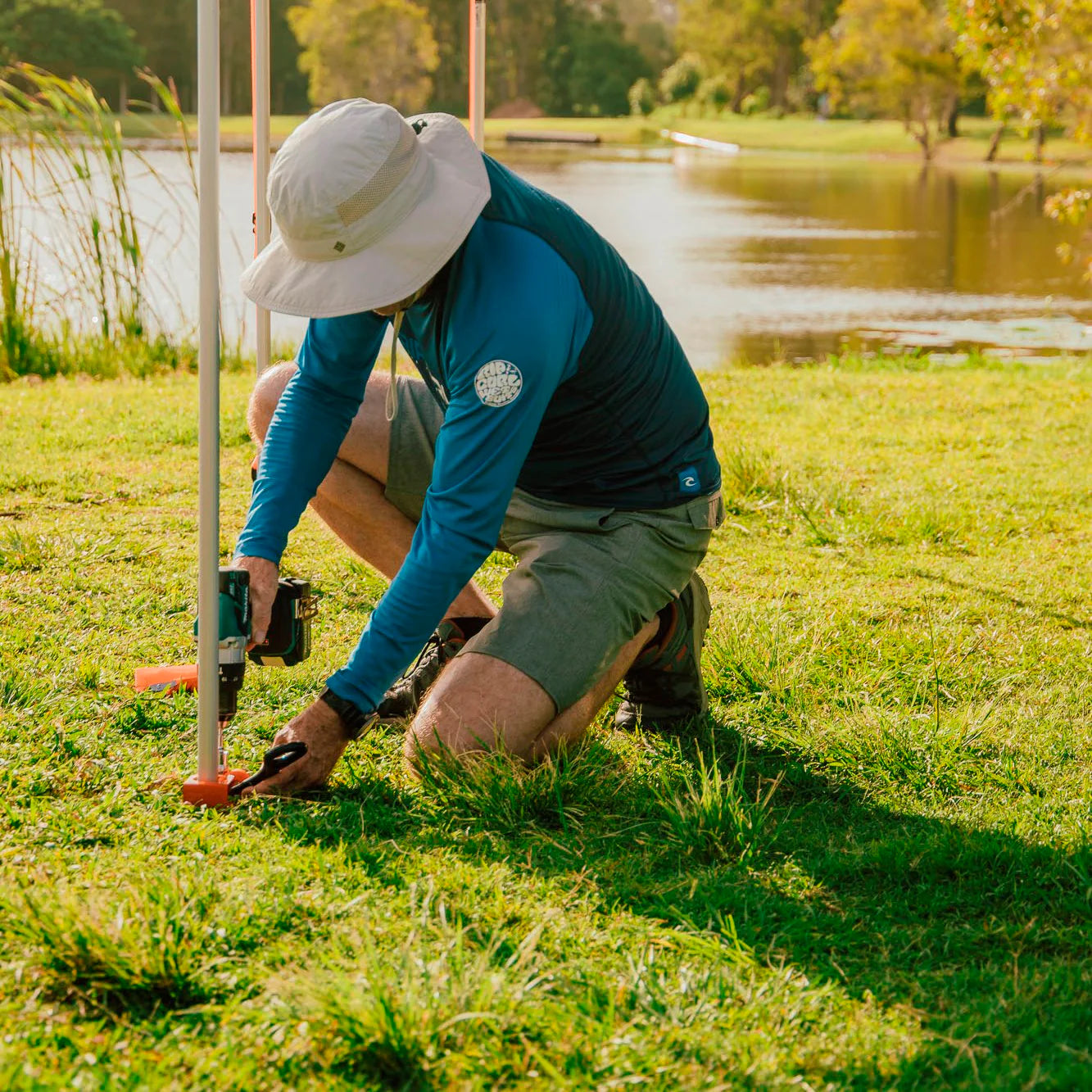

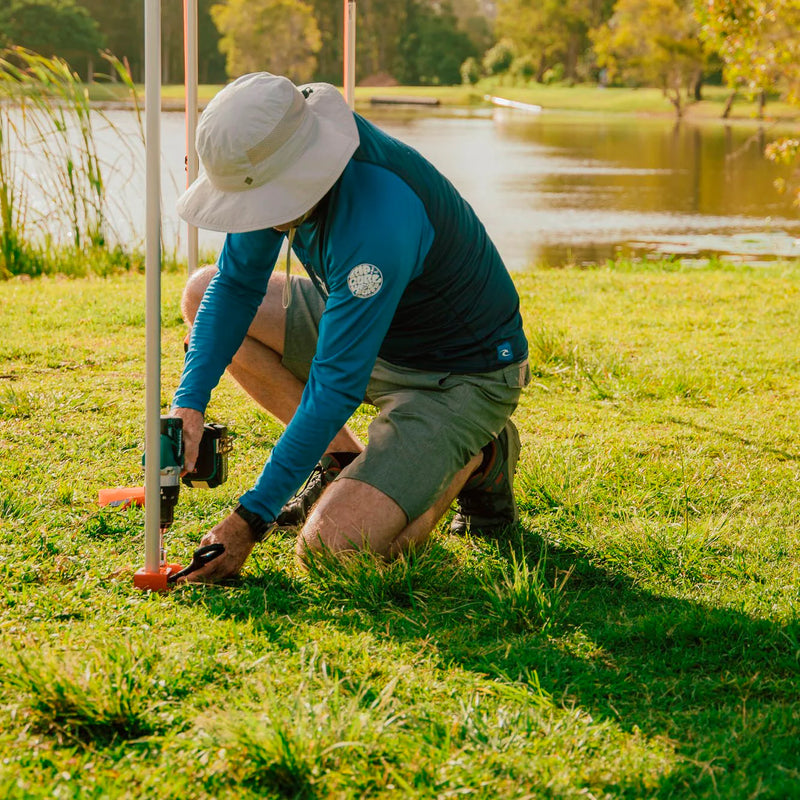

This kit is built around screw-in anchoring and a low-profile setup that helps minimise trip hazards while maximising stability. The included Tuff Dog screw-in pegs use a left-hand thread—they install by turning counter-clockwise.

Specifications

• Best suited for: 4x4 side awnings (2 pole configurations)
• Pegs: Tuff Dog Screw-In Pegs™ with Hook Collar
• Peg length: 180mm
• Thread: Left-hand thread (turn counter-clockwise to install)
• Tooling: Includes 19mm socket and drill adaptor
• Storage: Includes Ground Dogs drawstring bag

Inclusions

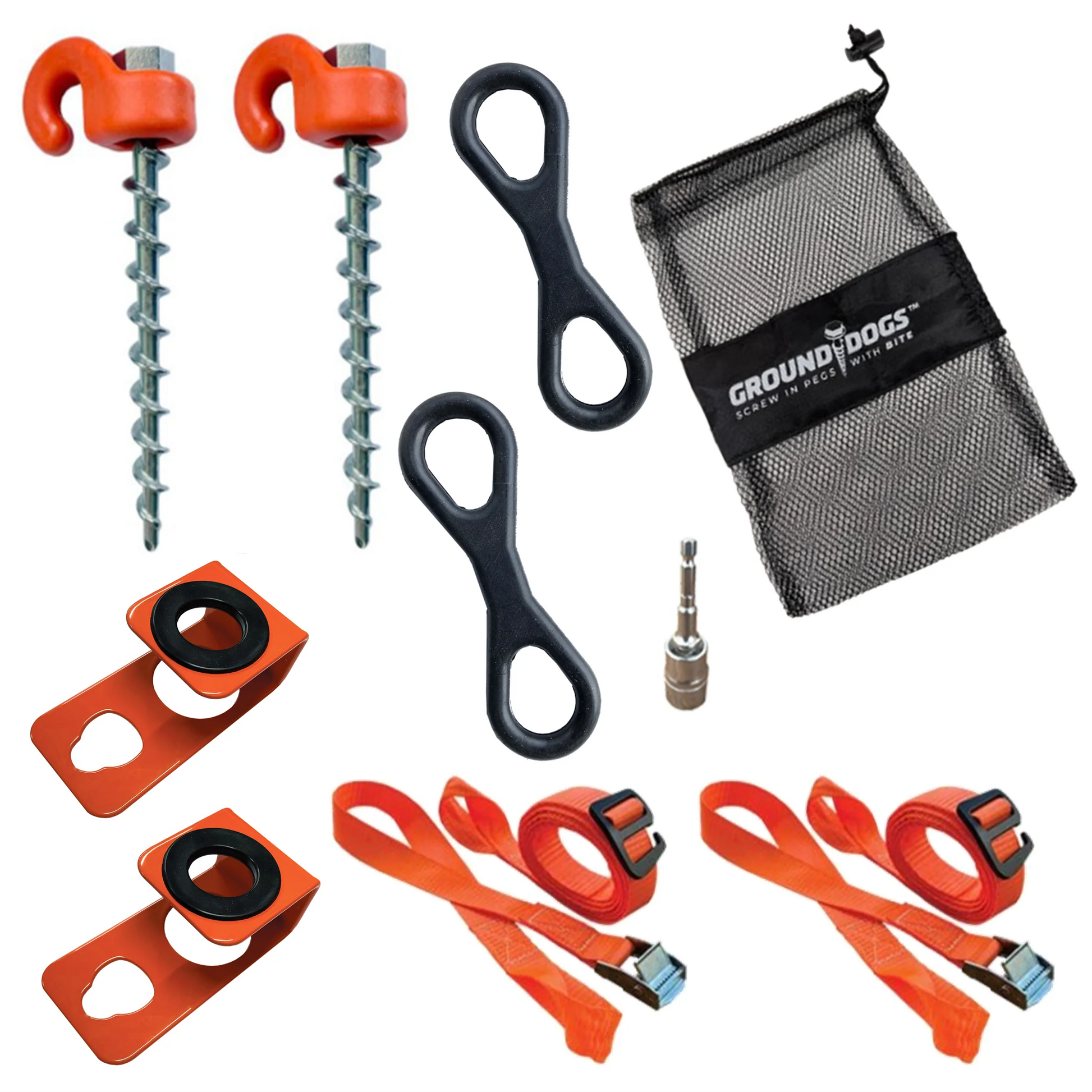

Your complete 4x4 Side Awning Tie Down Kit includes:

• 2 x Tuff Dog Screw-In Pegs™ with Hook Collar (180mm, left-hand thread)

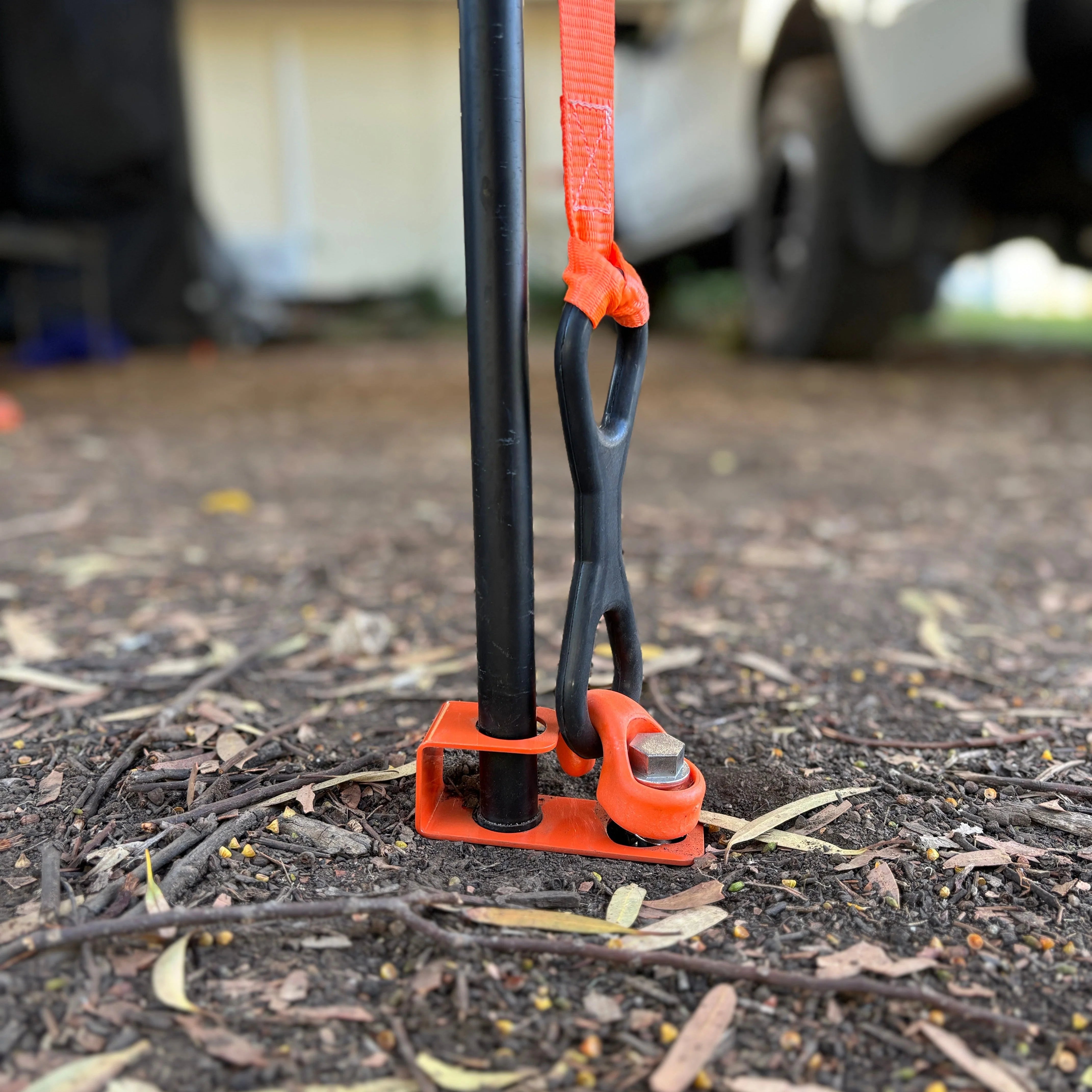

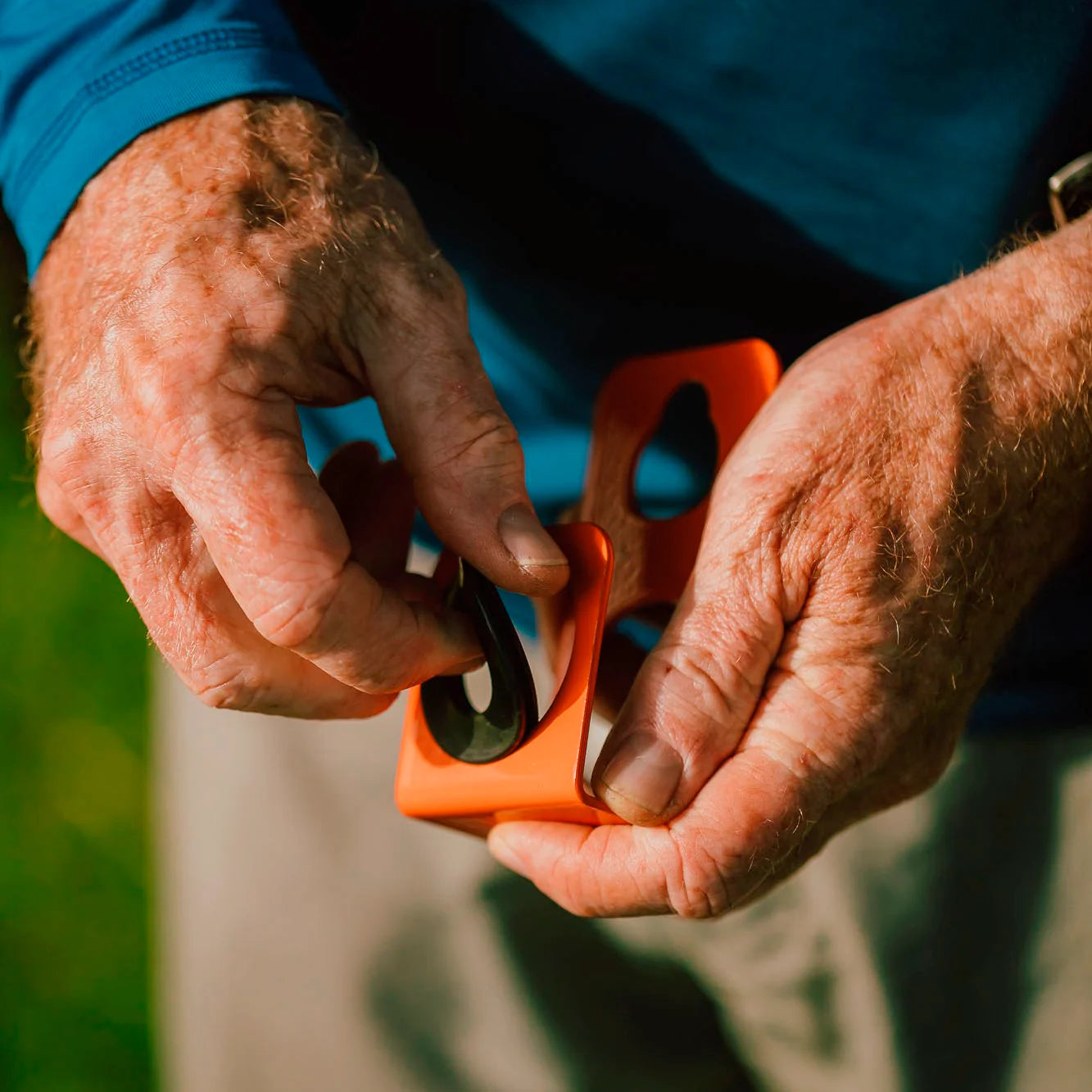

• 2 x 4x4 Awning Tie Down Brackets (with removable grommet)
• 2 x Heavy-Duty Tie Down Straps (secure fastening system)
• 2 x Safety Springs (replaces dangerous metal springs)

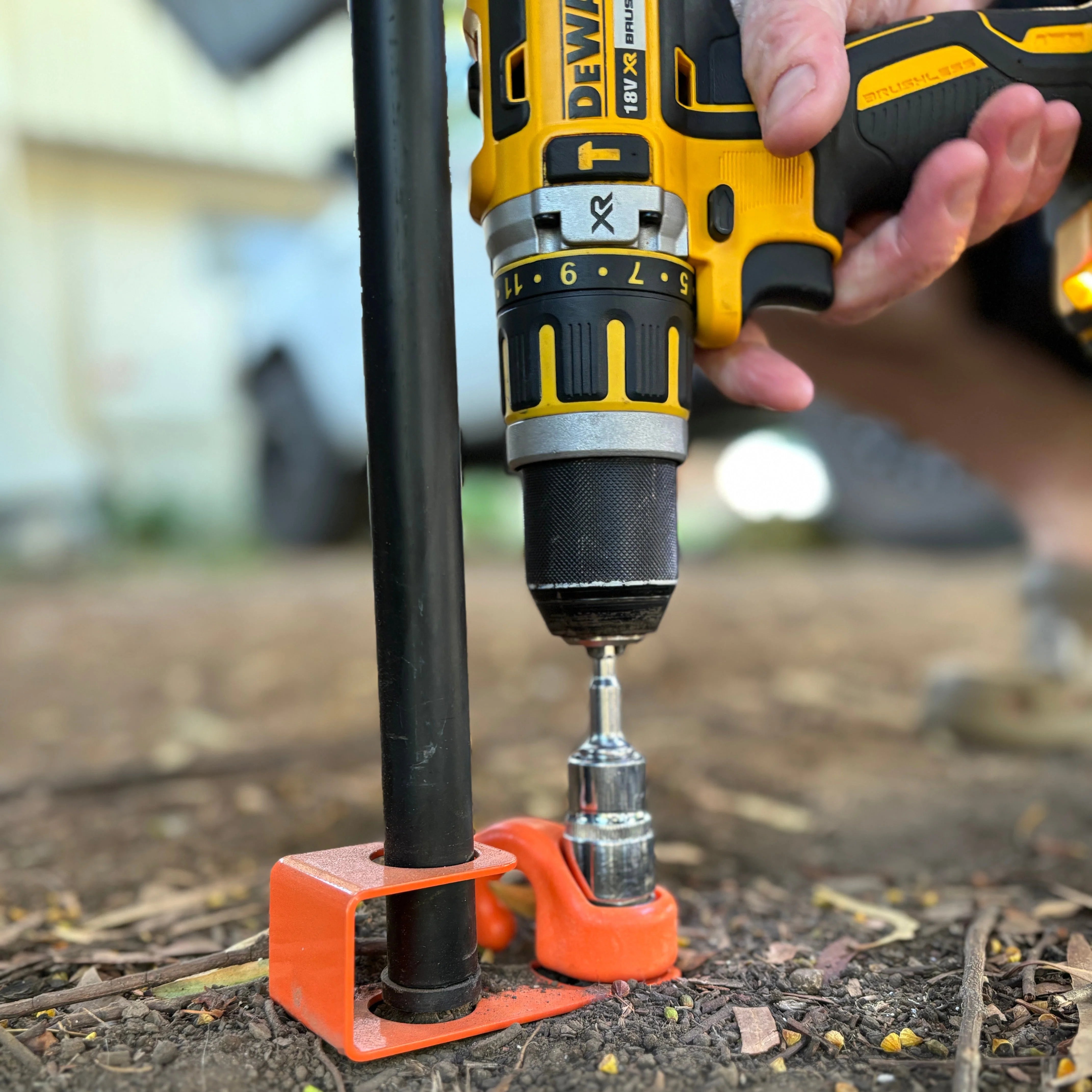

• 1 x 19mm Socket and Drill Adaptor
• 1 x Ground Dogs Drawstring Bag

Operating Tips

Weather Considerations

• Side awnings are considered a sunshade and are suitable only in light winds.
• Even in calm weather, awnings should be anchored—don’t risk damage.
• If strong winds are expected, be ready to retract your awning to avoid damage.

Ground Conditions & Recommended Peg Upgrades

• Hard rocky ground: use Tuff Dog Screw-In Pegs™ (included)
• Soft/muddy ground: upgrade to Big Dog Screw-In Pegs™
• Beach / sandy ground: upgrade to Sand Dog Screw-In Pegs®
• Beach note: there’s no need to use the 4x4 Anchor Plates on the beach

Why the shaped peg hole in the 4x4 Anchor Plate?
It’s designed to allow a Big Dog Peg to be used if you encounter very soft conditions.

Troubleshooting

• Peg won’t go in: confirm you’re turning counter-clockwise, apply steady downward pressure, and try a different location if the ground is too hard.
• Strap too tight/loose: adjust tension gradually—awnings need some flexibility in wind.
• Peg pulling out: conditions are too soft for Tuff Dogs—use Big Dogs.
• Awning stress: reduce strap tension; safety springs should not be distorted.

Tip: Correct installation and choosing the right peg for the ground conditions will deliver years of reliable awning security.
